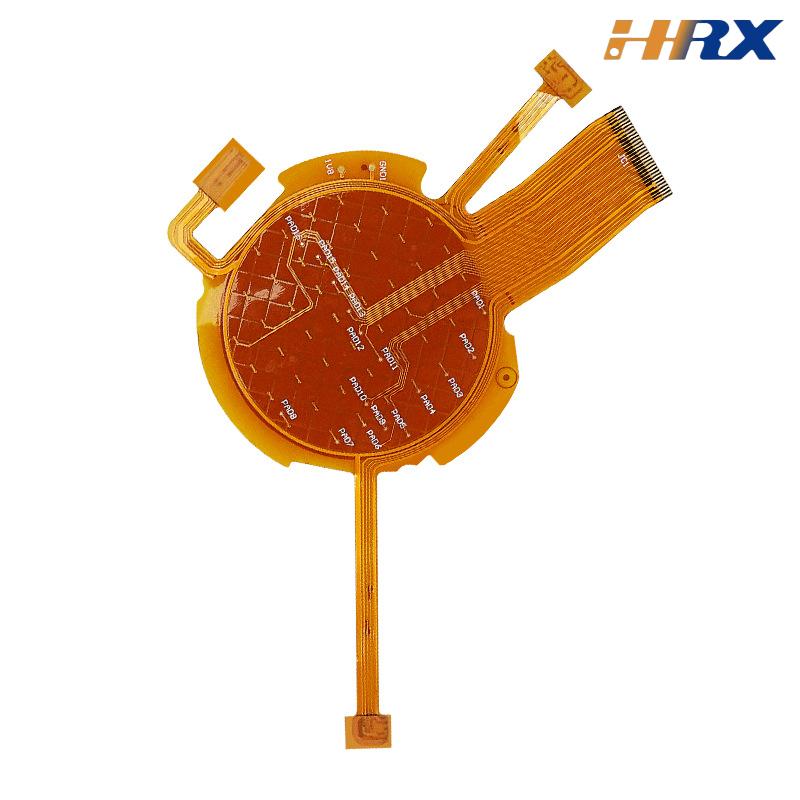

In the dynamic landscape of Flexible Printed Circuit (FPC) manufacturing, FPC circuit fabrication is universally recognized as the "soul" of the entire production workflow. This critical process involves replicating precision-engineered circuit schematics onto Flexible Copper Clad Laminate (FCCL) via pattern transfer technology, followed by chemical etching to remove excess copper foil—ultimately forming the conductive pathways that power modern electronic devices. As a leading global ODM/OEM FPC manufacturer specializing in FPC, PCB, and Rigid-Flex PCB production, Shenzhen Huaruixin Electronics Co., Ltd. has refined a cutting-edge, quality-centric approach to this core process. Below is a structured, clause-by-clause breakdown of our processes, unique advantages, and critical quality controls—optimized to demystify high-precision FPC manufacturing for industry partners and search audiences alike.

1. Huaruixin’s Core Methodology for FPC Circuit Fabrication: Precision at Every Step

At Shenzhen Huaruixin Electronics, our approach to FPC circuit fabrication is rooted in three pillars: standardized workflows, automated control, and rigorous quality validation—all tailored to meet the demands of industries ranging from consumer electronics to automotive and medical devices.

FCCL Pre-Treatment & Pattern Transfer Excellence:

Before pattern transfer, we subject Flexible Copper Clad Laminate (FCCL) to a multi-step pre-treatment process (including degreasing, micro-etching, and passivation) to eliminate surface contaminants and enhance adhesion between the copper foil and photosensitive material. For pattern transfer, we use high-resolution photomasks (up to 5μm line width capability) paired with CNC-aligned exposure systems, ensuring circuit schematics are replicated with an accuracy of ±0.01mm—critical for fine-pitch FPC applications (line width/spacing ≤ 0.05mm).

Controlled Chemical Etching for Conductive Pathways:

Post-pattern transfer, our etching process employs acid-based chemistries (optimized for different copper thicknesses: 12μm, 18μm, 35μm) with real-time parameter monitoring. Our automated etching lines adjust chemical concentration (e.g., ferric chloride, cupric chloride), temperature (45-55℃), and spray pressure dynamically to prevent etching undercut and ensure uniform copper removal. This precision guarantees that retained circuit lines maintain consistent width and electrical conductivity—essential for high-frequency FPC performance.

In-Line Quality Inspection (IQI) for Defect Prevention:

We integrate AOI (Automated Optical Inspection) systems at two critical stages: post-pattern transfer (to detect misalignment, missing patterns, or photoresist defects) and post-etching (to verify line width, spacing, and absence of copper residues). For high-reliability applications (e.g., automotive FPC), we add electrical test (ET) stations to validate continuity and insulation resistance—ensuring zero defective circuits reach downstream assembly.

2. Unique Advantages: What Makes Huaruixin a Top FPC Manufacturer in Shenzhen

In a competitive market, Shenzhen Huaruixin Electronics differentiates itself through technology innovation, customization capabilities, and a focus on sustainable FPC manufacturing. These strengths position us as a trusted partner for global brands seeking high-quality, scalable FPC solutions.

Advanced Dry Film Lamination: The "Backbone" of Pattern Transfer:

As the critical "medium" for pattern transfer, dry film lamination is where Huaruixin excels:

Adaptive Preheating for FCCL Compatibility: Unlike one-size-fits-all approaches, we adjust substrate preheating temperatures (40-60℃) based on FCCL type (e.g., PI-based vs. PET-based) and thickness. For thin PI FCCL (25μm base film), we use lower temperatures (40-45℃) to avoid deformation; for thicker, high-temperature-resistant FCCL, we increase preheating to 55-60℃ for optimal dry film adhesion.

Bubble-Free, Wrinkle-Free Application: We utilize German-engineered vacuum laminators with dual-roller pressure control (5-8 kg/cm²) and constant-speed peelers for the polyethylene protective film. Post-lamination, a vacuum hold-down inspection ensures no micro-bubbles (a leading cause of etching voids and circuit breaks) remain—this attention to detail reduces defect rates to <0.1% for standard FPC orders.

Custom FPC Solutions for Niche Applications:

As a full-service ODM FPC manufacturer, we specialize in tailoring circuit fabrication to unique customer needs:

High-Temperature FPC: For automotive under-hood or industrial applications, we use high-temperature-resistant dry films and etching chemistries that withstand -40℃ to +150℃ operating temperatures.

Flex-Rigid FPC: Our hybrid fabrication process integrates rigid PCB sections (e.g., FR-4) with flexible PI-based circuits, ensuring seamless transitions during etching and minimizing stress points in the final product.

Miniaturized FPC: For wearable devices or IoT sensors, we leverage laser direct imaging (LDI) technology (instead of traditional photomasks) to achieve ultra-fine circuit patterns (line width 3μm) – a capability few manufacturers in Shenzhen offer.

Eco-Friendly & Efficient Production:

Aligning with global sustainability goals, we’ve optimized our FPC circuit fabrication for minimal waste:

our etching lines use closed-loop chemical recycling systems (reducing chemical consumption by 30%), and we source RoHS-compliant dry films and FCCL to ensure environmentally friendly FPC production. This commitment not only reduces our carbon footprint but also meets the eco-requirements of European and North American markets.

3. Critical Considerations in FPC Circuit Fabrication: Mitigating Risks for Reliability

Even with advanced technology, FPC circuit fabrication requires vigilance to address common challenges. At Huaruixin, we proactively manage these risks to ensure consistent product quality.

Dry Film Adhesion: Preventing Etching Failures:

Poor dry film adhesion leads to etching breakthrough (chemicals seeping under the film) and circuit damage.

 We mitigate this by:

(1) testing dry film compatibility with each FCCL batch (ensuring adhesion strength ≥ 5N/cm via peel tests);

(2) controlling workshop humidity (45-55% RH) to avoid moisture absorption by the dry film;

(3) using plasma treatment for rough copper surfaces (enhancing mechanical bonding).

Circuit Dimensional Stability: Avoiding Line Width Variation:

Flexible substrates (e.g., PI) are prone to thermal expansion during processing, which can distort circuit patterns.We address this by:

(1) using pre-shrunk FCCL (subjected to 120℃ heat treatment before fabrication);

(2) calibrating exposure and etching equipment for thermal expansion coefficients (CTE) of different substrates;

(3) conducting post-etching dimensional checks with laser profilometers (ensuring line width variation ≤ ±10% of design specs).

Cleanroom Environment: Controlling Particulate Contamination:

Dust or debris on the FCCL surface causes photoresist pinholes and etching defects. Huaruixin maintains a Class 10,000 cleanroom for FPC circuit fabrication, with HEPA filtration systems (removing 99.97% of particles ≥ 0.3μm) and air shower entry points. We also require staff to wear anti-static clothing and use ESD-safe tools to prevent electrostatic damage to sensitive circuits.
