In the era of high-speed electronics—where 5G modules demand 10Gbps+ transmission and automotive FPCs require 15-year durability—impedance testing stands as the uncompromisable gatekeeper of signal integrity for flexible printed circuits (FPC), printed circuit boards (PCB), and rigid-flex boards. For Shenzhen Huaruixin Electronics Co., Ltd., a global ODM/OEM leader in FPC/PCB manufacturing, mastering impedance control isn’t just quality assurance—it’s a technical differentiator aligned with IPC-6013D and IATF16949 standards. Below is a definitive guide tailored to engineers, buyers, and quality managers:

1. Core Roles of Impedance Testing in FPC/PCB Quality Assurance

Impedance (Z0), calculated as the square root of distributed inductance over capacitance (Z0=√(L/C)) , directly dictates signal performance. Its testing delivers three non-negotiable values:

1.1 Eliminates Signal Distortion in High-Speed Applications

Mismatched impedance triggers reflections, crosstalk, and attenuation—fatal for 5G base station PCBs or foldable phone FPCs. Testing verifies target impedance (50Ω for RF circuits, 90Ω for HDMI 2.1 ) by validating critical FPC/PCB parameters:

Microstrip/Stripline Geometry: Line width (w), copper thickness (t), and dielectric height (h)

Material Stability: Dielectric constant (εr) of PI substrates (FPC) or Rogers 4350B (high-frequency PCB)

Coverlay Impact: Thickness of FPC coverlay (CVL) that modulates εr

Huaruixin’s TDR (Time Domain Reflectometry) tests detect impedance discontinuities as small as ±2Ω, preventing data errors in AI server PCBs.

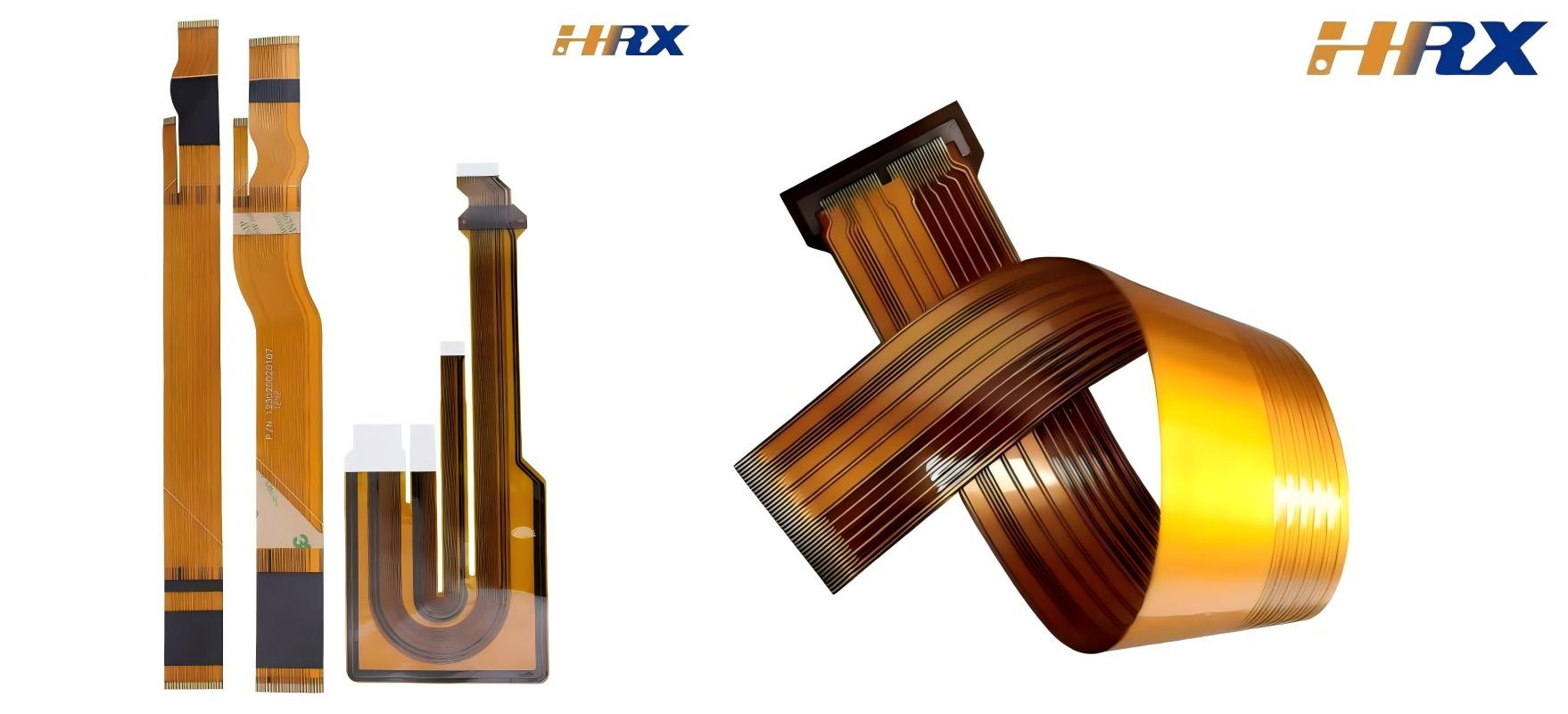

1.2 Ensures Dynamic Flex Reliability for FPCs

Unlike rigid PCBs, FPCs face repeated bending (e.g., wearables, automotive door modules). Impedance testing under cyclic flex (10,000+ bends) validates:

No resistance drift beyond ±0.01Ω

Stable signal transmission (attenuation < -3dB at 10GHz)

Adhesive layer integrity that avoids delamination-induced impedance shifts

1.3 Guarantees Batch Consistency Across Production

Even 3μm line-width deviation (common in LDI exposure) can shift impedance by 10%. Huaruixin implements:

Pre-production: Impedance simulation via Polar SI9000 for FPC/PCB stackups

In-production: 1 sample/50 units tested with vector network analyzers (VNA)

Post-production: Full testing for automotive-grade boards (IATF16949 requirement)

2. Why Impedance Testing Is Non-Negotiable (Not Optional)

Skipping tests creates hidden risks that escalate costs by 5–10x . Here’s why it’s mandatory:

2.1 Prevents Field Failures in Mission-Critical Devices

A medical PCB with 10% impedance mismatch may pass lab tests but fail in MRI machines—endangering lives. Huaruixin’s SWR (Standing Wave Ratio) tests ensure RL ≥ 10dB (50Ω benchmark ) for diagnostic equipment FPCs.

2.2 Meets Global Standards & Customer Specifications

FPC: IPC-2223C mandates impedance tolerance of ±10% for dynamic flex applications

Automotive: IATF16949 requires traceable impedance data for ADAS radar FPCs

5G: 3GPP specifies 90Ω ±5% differential impedance for mmWave PCBs

2.3 Reduces Rework Costs for ODM/OEM Projects

For a 10k-unit FPC order (wearable devices), 8% impedance defects cost $120k+ in rework. Huaruixin’s pre-testing cuts defect rates to <0.1% for consumer electronics clients.

3. Critical Considerations for Accurate Impedance Testing

Avoid common pitfalls with these FPC/PCB-specific protocols:

3.1 Control Test Environment for FPC Sensitivity

PI substrates (FPC) have εr that shifts 0.2 per 5℃ temperature change. Huaruixin’s labs maintain:

23±2℃ temperature, 45±10% humidity

EMI shielding (100V/m field strength) to avoid interference

3.2 Optimize Test Point Placement

FPC: Avoid bend zones; test 5mm from rigidizers

Rigid-Flex: Add 20% extra points at rigid-flex junctions

High-Density PCB: Use test coupons (IPC-2557A ) for microvia-dense areas

3.3 Match Test Frequency to End-Use

Bluetooth FPCs: Test at 2.4GHz

5G PCBs: Test up to 20GHz (VNA-based S-parameter analysis )

Automotive Ethernet: 100MHz differential impedance (100Ω ±7%)

4. Huaruixin’s Industry-Leading Impedance Control Solutions

As a trusted partner for 500+ global clients, Huaruixin integrates impedance testing into a full-lifecycle workflow:

4.1 DFM-Driven Pre-Production Optimization

Our engineers collaborate with clients to:

Simulate impedance for custom FPC stackups (PI + 35μm ED copper + 25μm CVL)

Adjust line width (e.g., 0.2mm for 50Ω FPC with εr=3.0 )

Select low-drift adhesives for high-temperature automotive FPCs

4.2 Advanced Testing Equipment Portfolio

TDR: Keysight N1923A for pinpointing impedance breaks in dynamic flex FPCs

VNA: Anritsu MS2038C (DC-20GHz) for 5G PCB differential impedance

Flying Probe: Non-contact testing for fine-pitch FPCs (pitch < 0.1mm)

4.3 Traceable Quality Data System

Every board’s impedance report (including test time, equipment ID, operator) is stored in our MES for 3 years. Clients access real-time data via a dedicated portal—critical for medical/automotive audit compliance.

5. Partner with Huaruixin for Precision Impedance Control

Whether you need:

ODM: Custom 5G FPCs with ±5% impedance tolerance

OEM: Mass-produced automotive rigid-flex boards meeting IATF16949

Expertise: Guidance on FPC impedance simulation for dynamic applications

We deliver end-to-end solutions. For industry insights (e.g., “How to reduce FPC impedance drift in high-humidity environments”) or project quotes:
