In the realm of Flexible Printed Circuit (FPC), Printed Circuit Board (PCB), and Rigid-Flex Printed Board manufacturing, the developing process serves as a cornerstone for achieving high-precision circuit patterns—especially critical for FPCs, which demand flexibility, miniaturization, and reliability in applications like wearable devices, automotive electronics, and medical equipment. At its core, this process uses an alkaline developing solution (typically a 1-2% sodium carbonate solution) to rinse the substrate, removing uncured dry film from light-blocking areas while preserving cured dry film (in light-transmitting regions, i.e., the desired circuit traces) on the Flexible Copper Clad Laminate (FCCL). Standard parameters for this step include a temperature range of 25-30℃ and a developing time of 60-120 seconds. Post-development, thorough rinsing with deionized water is mandatory to eliminate developer residue (which causes copper corrosion) , followed by inspection to confirm the circuit pattern’s integrity—free of breaks, missing segments, or dry film residue.

As a global-leading ODM/OEM manufacturer specializing in FPC design and development, PCB mass production, and Rigid-Flex Printed Board customization, Shenzhen Huaruixin Electronics Co., Ltd. has redefined the developing process with FPC-specific innovations, intelligent controls, and quality assurance systems. Below, we detail our unique methodologies, critical considerations for FPC manufacturing, and how our solutions align with industry demands.

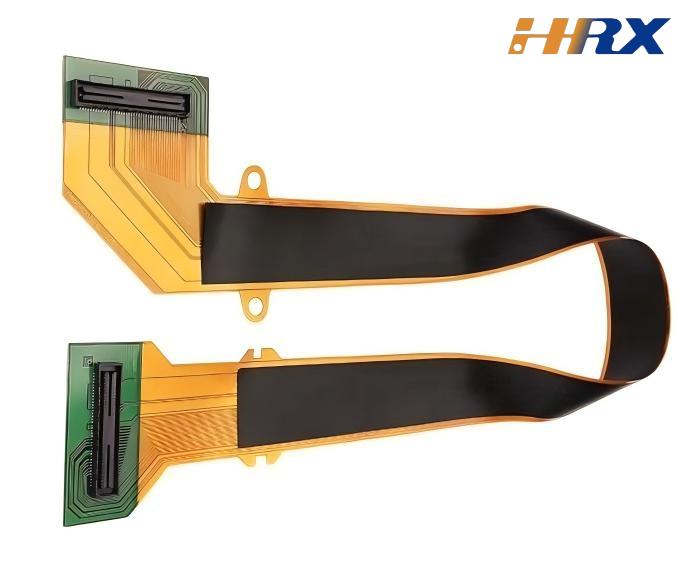

1. Shenzhen Huaruixin’s Unique FPC/PCB Developing Methodologies

Our competitive edge lies in tailoring the developing process to FPC’s unique characteristics—such as its flexible FCCL substrate (e.g., PI-based or PET-based) and thin coverlay layers—while integrating automation and data traceability to eliminate inconsistencies.

1.1 FPC-Specific Parameter Tuning with AI-Powered Monitoring

Dynamic Temperature & Concentration Control: Unlike generic PCB developing systems, our setup uses AI-driven sensors to monitor the alkaline developer’s temperature (25-30℃) and sodium carbonate concentration (1-2%) in real time—critical for FPCs, as temperature fluctuations can damage fragile FCCL. The system auto-adjusts via heating/cooling modules and solution replenishment, ensuring parameters stay within optimal ranges. For example, when processing high-density FPCs (line width/space < 0.1mm), we fine-tune the concentration to 1.5-2% to ensure full removal of uncured dry film in narrow gaps, preventing subsequent etching defects.

Customized Timing for Flexible Substrates: FPCs require more precise time control than rigid PCBs due to their thinner copper layers (often 1/2 oz or 1 oz). We adjust developing time based on substrate type: 90-120 seconds for PI-based FPCs (which have higher dry film adhesion) and 60-80 seconds for PET-based FPCs. This avoids over-developing (which weakens the FCCL-copper bond) or under-developing (which leaves dry film residue on circuit traces).

1.2 Automated Rinsing & Drying for FPC Protection

3-Stage Deionized Water Rinsing: Post-development, FPCs undergo a multi-stage rinsing process to eliminate residue—critical for preventing corrosion of the thin copper layers. Stage 1 uses high-pressure deionized water (0.3-0.5MPa) to flush surface developer; Stage 2 employs ultra-pure water to target residue in FPC solder mask gaps; Stage 3 uses low-temperature hot air (40-50℃) for gentle drying, avoiding FCCL warpage (a common issue with high-heat drying).

Air-Float Conveyance for Fragile FPCs: Traditional roller conveyors risk scratching or stretching FPCs. We use air-float systems to transport FPCs during rinsing/drying, ensuring non-contact handling that preserves the substrate’s flexibility and dimensional stability—essential for flexible circuits used in foldable devices.

1.3 Advanced Inspection for FPC Circuit Integrity

AOI + Microscopic Double-Check: For FPCs with fine circuits, we combine Automated Optical Inspection (AOI) (5μm resolution) with manual microscopic inspection. The AOI system scans for defects like circuit breaks, dry film lift-off, and residue spots, while inspectors use 50x magnification to verify critical areas (e.g., FPC connector pads). This reduces defect rates to <0.2%, far below industry averages.

MES-Driven Traceability: Each FPC/PCB is assigned a unique QR code, linking to real-time data in our Manufacturing Execution System (MES)—including developer parameters, rinsing pressure, and inspection results. Customers can access this data to validate quality, a key differentiator for industries like automotive and medical (where traceability is mandatory).

2. Critical Considerations for FPC/PCB Developing (Risk Mitigation)

Shenzhen Huaruixin prioritizes addressing FPC-specific challenges that cause production delays or quality failures—ensuring consistent performance across high-volume orders.

2.1 FPC-Specific Quality Risks & Solutions

Preventing Dry Film Peeling on FCCL: FPCs’ flexible substrates have lower surface tension than rigid PCBs, increasing dry film peel risk. We pre-treat FCCLs with micro-etching (using a dilute sulfuric acid solution) to roughen the copper surface, enhancing dry film adhesion. During development, we limit developer pressure to ≤0.2MPa to avoid lifting cured dry film.

Avoiding Coverlay Damage: For FPCs with pre-applied coverlay (a protective layer), we use low-foam alkaline developers to prevent foam from seeping between the coverlay and copper—this avoids coverlay delamination and ensures the circuit’s long-term reliability.

2.2 Safety & Environmental Compliance

Chemical Safety for Operators: All staff handling alkaline developers receive OSHA-aligned training and use PPE (acid-base resistant gloves, face shields, and aprons). Emergency eyewash stations and neutralizing kits are stationed near the developing line to address spills.

Eco-Friendly Wastewater Treatment: Developing/rinsing wastewater (containing sodium carbonate and dry film byproducts) is treated via pH neutralization (6-9), coagulation, and filtration—meeting China’s GB 21900-2008 and international ISO 14001 standards. This supports customers’ sustainability goals, a growing priority for global brands.

3. Partner with Shenzhen Huaruixin for Your FPC/PCB Projects

Whether you need custom FPCs for wearable tech, high-reliability PCBs for industrial controls, or Rigid-Flex Printed Boards for automotive sensors, Shenzhen Huaruixin delivers end-to-end solutions—from design to mass production—backed by our optimized developing process.

Project Collaboration: Our engineering team specializes in solving FPC/PCB challenges, such as miniaturization (line width/space down to 0.05mm) and high-temperature resistance (for automotive under-hood applications). Share your project specs, and we’ll provide a tailored ODM/OEM plan.

Industry Resources: Visit www.hrxfpc.com to access guides on "FPC manufacturing process," "PCB developing solution selection," and case studies of our work —resources designed to help you make informed decisions.

Technical Consultation: For questions about FPC material selection, developing parameters, or quality assurance, email sales@hrxfpc.com. Our team responds within 24 hours to support your project timeline.

Shenzhen Huaruixin Electronics Co., Ltd. combines FPC expertise, AI-driven process control, and strict quality standards to deliver circuits that meet the most demanding applications. Partner with us to turn your FPC/PCB concepts into high-performance products—backed by global manufacturing capabilities and customer-centric service.
