In the fast-evolving landscape of electronic engineering, Flexible Printed Circuits (FPC) have become the backbone of compact, high-performance devices. As a key derivative, FPC wiring harnesses combine the flexibility of FPCs with the connectivity of traditional wire assemblies, enabling seamless signal transmission in space-constrained environments. This guide explores critical design parameters, industry-specific applications, and why Shenzhen Huaruixin Electronics stands as a leading FPC wiring harness manufacturer.

What is an FPC Wiring Harness?

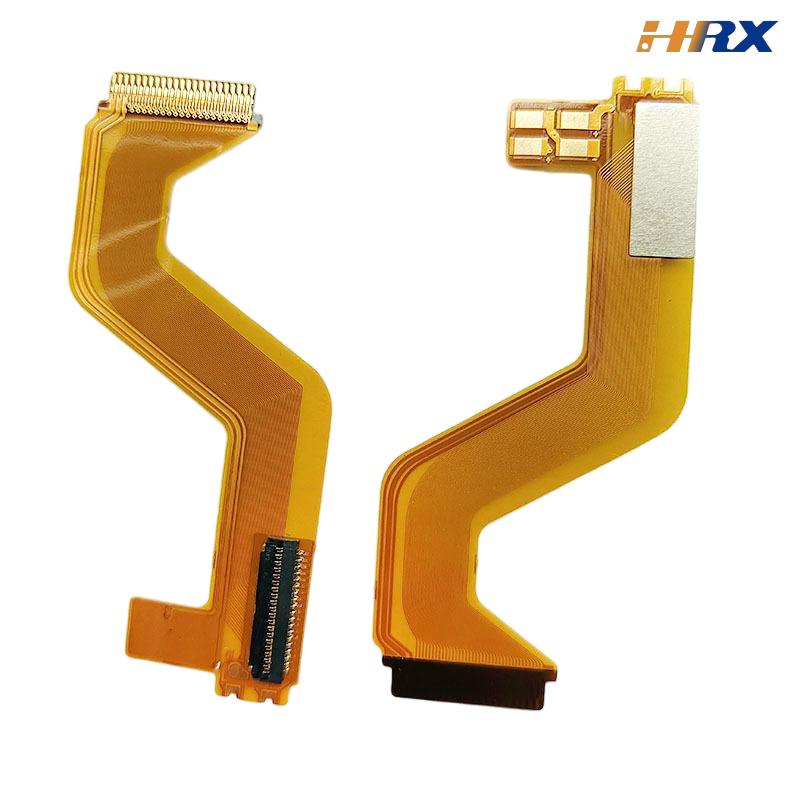

An FPC wiring harness integrates flexible copper-clad laminates (FCCL), polyimide substrates, and precision connectors into a single assembly, engineered to transmit power and data across dynamic electronic systems. Unlike rigid PCBs or conventional wire harnesses, FPC wiring harnesses offer:

Enhanced bend radius performance (up to 0.5mm for high-flex variants)

Reduced form factor (30-50% space savings compared to wire harnesses)

Improved EMI shielding through integrated grounding planes

High-temperature resistance (up to 150°C with polyimide materials)

Common applications include automotive infotainment systems, medical wearable monitors, IoT sensors, and foldable display modules—where reliability under repeated flexing is paramount.

Critical Design & Manufacturing Considerations for FPC Wiring Harnesses

1. Material Engineering

Selecting the right base film (polyimide vs. polyester) and conductive layer (rolled annealed copper vs. electroplated copper) directly impacts performance. For automotive-grade FPC harnesses, Shenzhen Huaruixin specifies high-Tg polyimide (glass transition temperature >280°C) to withstand engine bay environments, paired with 1oz-2oz copper traces for optimal current carrying capacity.

2. Flex Life & Mechanical Reliability

Dynamic applications demand FPC harnesses with >100,000 flex cycles (per IPC-2223 standards). Huaruixin achieves this through:

Controlled impedance routing to prevent signal degradation

Reinforced stiffeners at connector interfaces (FR4 or stainless steel)

Laser-ablated trace profiling to reduce stress concentration

3. Signal Integrity Optimization

High-speed data transmission (e.g., USB 3.1, LVDS) requires impedance matching (50Ω ±10% typical) and crosstalk mitigation. Huaruixin’s engineering team uses advanced tools like Mentor Xpedition for:

Differential pair routing with controlled spacing

Ground plane segmentation for noise isolation

Via minimization to reduce signal reflections

4. Connector Integration & Termination

Reliable termination is critical—Huaruixin employs ZIF (Zero Insertion Force) and LIF (Low Insertion Force) connectors from industry leaders like Hirose and Molex, with termination methods including:

Hot bar soldering for uniform joint formation

ACF (Anisotropic Conductive Film) bonding for fine-pitch applications

Press-fit contacts for reworkable assemblies

5. Quality Assurance & Compliance

All Huaruixin FPC wiring harnesses undergo rigorous testing:

IPC-A-600 for visual inspection standards

Thermal cycling (-40°C to 125°C for 1,000 cycles)

Solderability testing per J-STD-002

Why Choose Shenzhen Huaruixin for FPC Wiring Harnesses?

As a specialized FPC/PCB/ rigid-flex ODM/OEM manufacturer, Huaruixin delivers unique advantages:

Vertical Integration: In-house capabilities from FCCL lamination to final assembly reduce lead times by 30%

Customization Expertise: Supports multi-layer FPC harnesses (up to 12 layers) and flex-to-rigid transitions

Global Compliance: Certified to ISO

Scalable Production: 50,000+ sq.m manufacturing facility with monthly capacity of 1.2 million FPC harnesses

Ready to Enhance Your Electronic Design?

Whether you need high-flex FPC harnesses for robotics or automotive-grade wiring assemblies, Huaruixin provides end-to-end solutions. Our engineering team offers free design reviews to optimize your FPC harness for performance, cost, and manufacturability.

Explore technical resources:www.hrxfpc.com

Request a quote: sales@hrxfpc.com

Key services: FPC prototyping, volume production, failure analysis, and compliance testing

Elevate your product’s reliability with FPC wiring harnesses engineered for the future of electronics.
