In the dynamic flexible printed circuit (FPC) manufacturing landscape, surface finish is critical to product performance, reliability, and applicability. Immersion silver (ImAg) is a popular surface treatment for FPCs due to its unique advantages, but it also presents inherent challenges requiring meticulous attention during design and production.

As a global ODM/OEM manufacturer specializing in FPC, PCB, and rigid-flex boards, Shenzhen Huaruixin Electronics Co., Ltd. boasts extensive experience in implementing immersion silver processes. In this blog, we will delve into the core characteristics of immersion silver, explore critical considerations in FPC design and production to ensure process success, provide actionable strategies to mitigate common issues, and highlight the major application fields where this surface finish excels. Our goal is to share valuable industry insights and technical expertise to support fellow professionals in the electronics manufacturing sector.

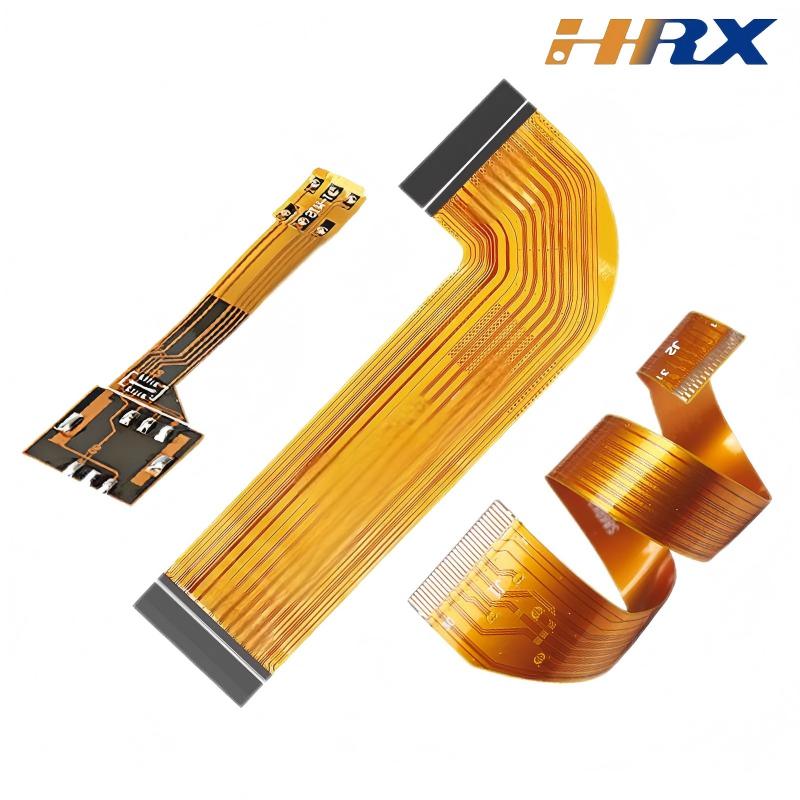

1. Core Characteristics of Immersion Silver Surface Finish for FPC

Immersion silver is an electroless plating process that deposits a thin, uniform silver layer on FPC copper surfaces via chemical displacement, eliminating the need for external power sources and offering cost-effectiveness. Below is a detailed breakdown of its key advantages and limitations, based on Huaruixin Electronics' practical experience.

1.1 Key Advantages of Immersion Silver

- Simplified Process & Cost-Effectiveness: ImAg eliminates complex electrolytic equipment/power supplies, reducing capital and operational costs. Its short plating cycle boosts throughput for high-volume FPC production. Huaruixin has optimized this process to ensure consistent quality while maintaining competitive costs for global clients.

- Lead-Free Soldering & SMT Compatibility: Aligning with global environmental standards, ImAg exhibits excellent wettability with lead-free solders (e.g., SAC305), ensuring reliable solder joints during SMT assembly. It is ideal for FPCs in consumer/automotive electronics adhering to RoHS requirements.

- Superior Surface Flatness & Fine Line Capability: ImAg deposits a smooth, uniform layer with minimal thickness variation, critical for high-density interconnect (HDI) and fine-pitch FPCs. It avoids significant copper dissolution, preserving 20μm/20μm fine lines (per Huaruixin's practice) for high-performance, precise signal transmission applications.

1.2 Inherent Limitations & Challenges

- Stringent Storage & Contamination Susceptibility: Silver's reactivity makes ImAg layers prone to tarnishing/contamination from moisture, sulfur, or pollutants, degrading solderability and reliability. Huaruixin has observed significant yield losses from improper storage, especially for FPCs with long lead times.

- Solder Joint Microvoids: A common challenge, microvoids form from outgassing of organic additives in ImAg layers during soldering. They reduce solder joint strength and thermal conductivity, increasing failure risk under thermal cycling/mechanical stress.

- Electromigration & Galvanic Corrosion: Silver's high conductivity causes electromigration (ion migration, dendrite formation, short circuits). Galvanic corrosion (etching) between silver and copper, especially under solder masks, weakens FPC structure and impairs electrical performance.

- Electrical Testing Challenges: Thin silver layers are easily scratched during testing (e.g., ICT), affecting result accuracy. Silver's high conductivity can cause false readings without proper probe calibration.

2. Critical Design & Production Considerations for Immersion Silver FPCs

To leverage ImAg's advantages and mitigate limitations, meticulous attention to all FPC design/production stages is essential. Based on Huaruixin's years of experience, key considerations for quality and reliability are summarized below.

2.1 Design Phase Considerations

2.1.1 Solder Mask Design & Coverage

Solder mask design is critical for preventing silver-copper galvanic corrosion. Ensure full coverage of copper traces adjacent to ImAg pads with a minimum 0.1mm overlap ("solder mask expansion") to avoid interface exposure. Huaruixin uses advanced CAD tools to optimize solder mask alignment and coverage for each project.

UV-curable solder masks with strong adhesion to copper and silver are preferred for moisture/pollutant resistance. Avoid high-halogen masks, which react with silver and accelerate tarnishing.

2.1.2 Pad Design & Geometry

Optimize ImAg pad geometry to minimize stress and enable uniform plating. Recommend rectangular/oval SMT pads with rounded corners (prevent solder bridging) and pad sizes compatible with component leads (minimum 0.3mm fine-pitch spacing).

Avoid sharp pad edges/burrs (cause uneven plating and electromigration). Huaruixin's design team collaborates with clients to review pad designs for ImAg process and application compatibility.

2.1.3 Trace Width & Spacing

ImAg suits fine-line FPCs, but trace width/spacing must accommodate plating. Recommend 20μm minimum width for traces adjacent to ImAg pads and 20μm minimum spacing to ensure uniform silver deposition via solution circulation.

For high-frequency FPCs, optimize trace geometry to minimize signal loss. ImAg's thin silver layer offers excellent conductivity, but improper design causes impedance mismatches. Huaruixin's engineers provide impedance control support for optimal signal performance.

2.2 Production Process Considerations

2.2.1 Pre-Plating Cleaning & Preparation

Proper pre-plating copper cleaning (degreasing, micro-etching, activation) ensures adhesion and uniform deposition. Degreasing removes organics, micro-etching enhances adhesion via surface roughness, and activation eliminates oxide barriers. Huaruixin uses tailored multi-step cleaning (e.g., ultrasonic degreasing for complex/fine-line FPCs) and strictly controls micro-etching parameters for 0.1-0.3μm optimal roughness.

At Huaruixin Electronics, we use a multi-step cleaning process tailored to the specific requirements of each FPC. For example, for FPCs with complex geometries or fine lines, we use ultrasonic degreasing to ensure thorough cleaning without damaging the delicate traces. We also strictly control the micro-etching time and temperature to achieve the optimal surface roughness (typically 0.1-0.3μm).

2.2.2 Immersion Silver Plating Parameters

Tightly control ImAg plating parameters (bath temperature, time, solution concentration) for 0.1-0.5μm uniform layer thickness. Excessively thin layers reduce solderability/corrosion resistance; overly thick layers increase electromigration risk.

Huaruixin uses automated plating equipment with real-time monitoring to maintain ±1℃ temperature and ±5s time control. Regular solution analysis ensures optimal silver ion/additive concentrations.

2.2.3 Post-Plating Rinsing & Drying

Thorough post-plating rinsing (three-stage deionized water) removes residual solution that degrades silver layers and solder mask adhesion. Huaruixin follows rinsing with air drying and oven curing for complete dryness.

Control drying temperature/time (80-100℃ for 15-30 minutes for polyimide substrates) to avoid flexible substrate damage.

3. Strategies to Mitigate Common Issues with Immersion Silver FPCs

Despite strict design/production control, ImAg FPCs may still face microvoids, electromigration, and tarnishing. Based on practical experience, Huaruixin has developed effective mitigation strategies for product reliability.

3.1 Mitigating Microvoids in Solder Joints

Microvoids stem from organic additive outgassing during soldering. Mitigation measures include:

- Optimize Plating Bath: Use low-organic additive ImAg solutions. Huaruixin collaborates with leading suppliers and conducts regular solder joint quality tests to ensure performance.

- Pre-Bake Before Soldering: 125℃ pre-baking for 1-2 hours removes moisture/volatiles, critical for long-stored FPCs.

- Control Soldering Parameters: Minimize high-temperature exposure. For lead-free soldering, control peak temperature (245-255℃) and dwell time (<10s). Huaruixin provides customized soldering profiles based on FPC design and ImAg thickness.

3.2 Preventing Electromigration

Electromigration is a major concern for high-current/voltage ImAg FPCs. Effective prevention strategies:

- Limit Current Density: Design FPCs to keep silver-plated pad/trace current density <1×10^5 A/m² (increase trace width for high-current paths). Huaruixin uses simulation tools for current distribution analysis and trace optimization.

- Anti-Electromigration Additives: Incorporate additives that form a surface barrier, reducing silver ion mobility. Huaruixin has validated organic compounds for enhanced electromigration resistance.

- Thermal Management: High temperatures accelerate electromigration. For automotive/harsh environments, integrate heat sinks/thermal vias. Huaruixin designs thermal management features for enhanced reliability.

3.3 Avoiding Galvanic Corrosion

Silver-copper galvanic corrosion is caused by electrolytes (moisture) and potential differences. Prevention measures:

- Complete Solder Mask Coverage: Use AOI equipment to inspect for gaps/pinholes post-plating, ensuring full copper-silver interface coverage.

- Barrier Layer: For high-reliability applications, deposit a nickel barrier layer between copper and silver to eliminate galvanic cells. Huaruixin offers optional nickel-silver (Ni-Ag) plating.

- Controlled Storage: Store FPCs in dry environments (RH ≤50%) away from sulfur. Huaruixin uses vacuum-sealed packaging with desiccants for storage/transport protection.

3.4 Addressing Tarnishing & Contamination

Silver tarnishing is prevented by controlled storage/handling. Beyond vacuum packaging, key measures:

- Avoid Direct Contact: Use clean lint-free gloves to prevent fingerprint/oil contamination. Huaruixin enforces strict handling protocols in production.

- Anti-Tarnish Coatings: For long-storage FPCs, apply compatible anti-tarnish coatings to extend shelf life without affecting solderability. Huaruixin offers a range of such coatings.

3.5 Overcoming Electrical Testing Challenges

To avoid silver layer damage during testing, follow these steps:

- Proper Test Probes: Use rounded-tip probes with 50-100g pressure settings to minimize scratching. Huaruixin uses high-quality probes for ImAg FPC testing.

- Regular Equipment Calibration: Calibrate ICT/flying probe equipment to avoid false readings from silver's high conductivity. Huaruixin conducts regular calibration for accuracy.

- Optimized Test Pads: Design large-area dedicated test pads in non-critical areas to distribute probe pressure and prevent damage.

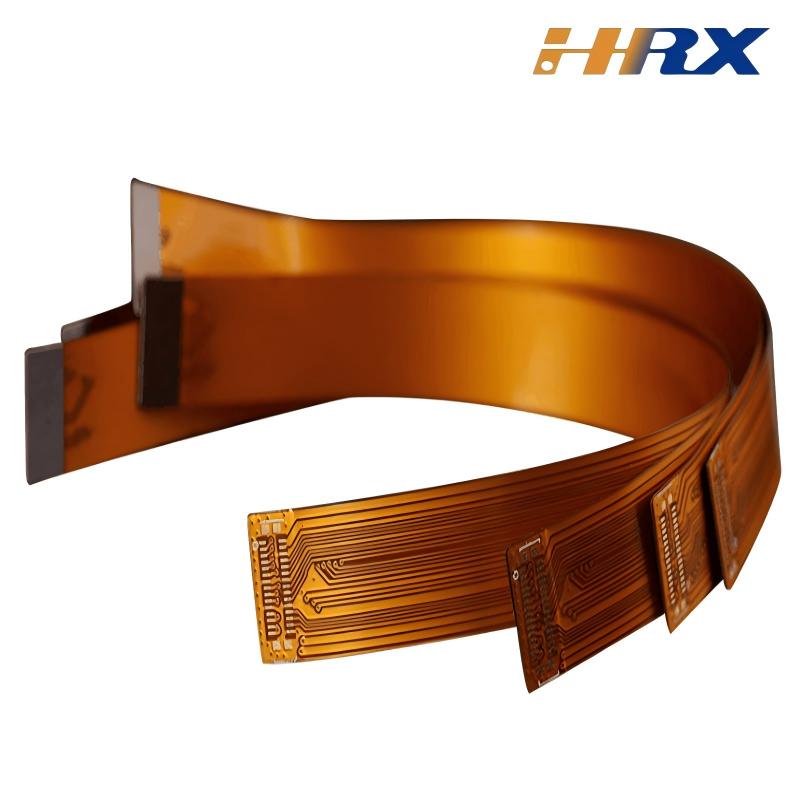

4. Major Application Fields of Immersion Silver FPCs

ImAg FPCs are widely used across industries due to their simplified processing, cost-effectiveness, fine-line capability, and lead-free compatibility. Key application fields with Huaruixin project examples are below.

4.1 Consumer Electronics

Consumer electronics is the largest ImAg FPC market, driven by demand for compact, lightweight, cost-effective devices. Key applications:

- Smartphones & Tablets: ImAg FPCs for touch screens, camera modules, and interconnects. Their fine-line capability enables slim designs. Huaruixin supplied ImAg FPCs for a leading brand's camera module, ensuring precise signal transmission and reliable soldering.

- Laptops & Ultrabooks: ImAg FPCs for keyboard backlights, trackpads, and wiring. Cost-effectiveness suits high-volume production.

- Wearable Devices: ImAg's lead-free compatibility and fine-line capability suit smartwatches/fitness trackers. Huaruixin developed ImAg FPCs for a fitness tracker, withstanding repeated bending and sweat exposure.

4.2 Automotive Electronics

EV and autonomous driving advancements boost demand for high-reliability automotive FPCs. ImAg applications include:

- Infotainment Systems: ImAg FPCs for touch screens/navigation/audio systems, ensuring RoHS compliance via lead-free compatibility.

- ADAS: Cameras/radar/lidar require precise signal transmission and reliability. ImAg's flatness/fine-line capability meets these needs. Huaruixin supplied ImAg FPCs for an ADAS camera module, ensuring stability in harsh automotive environments (temperature variations, vibration).

- EV BMS: ImAg FPCs monitor battery voltage/temperature, with cost-effectiveness suiting high-volume EV production.

4.3 Industrial Electronics

Industrial electronics uses ImAg FPCs for reliable, cost-effective applications:

- Industrial Control Systems: ImAg FPCs for PLCs, HMIs, and sensors, enabling efficient SMT-based production.

- Medical Devices: Biocompatible, reliable ImAg FPCs suit diagnostic equipment/wearable monitors. Huaruixin developed ImAg FPCs for a portable blood glucose monitor, ensuring precise signals and long-term reliability.

4.4 Telecommunications

5G base stations/routers require high-frequency FPCs. ImAg's excellent conductivity and flatness meet low-signal-loss, high-reliability demands. Huaruixin supplied ImAg FPCs for a 5G base station component, ensuring stable high-frequency performance.

5. Partner with Huaruixin Electronics for Your Immersion Silver FPC Needs

As a global FPC/PCB/rigid-flex leader, Shenzhen Huaruixin Electronics Co., Ltd. offers extensive ImAg expertise. Our advanced facilities, strict quality control, and dedicated engineering team deliver high-quality, reliable ImAg FPCs tailored to client needs.

For ImAg FPC project needs, contact us anytime. Our experts provide customized solutions from design to delivery. For more industry insights, visit www.hrxfpc.com or email sales@hrxfpc.com for consultation and knowledge exchange.

Huaruixin is committed to client success via innovative technology, superior quality, and excellent service. We look forward to collaborating on your next FPC project.
