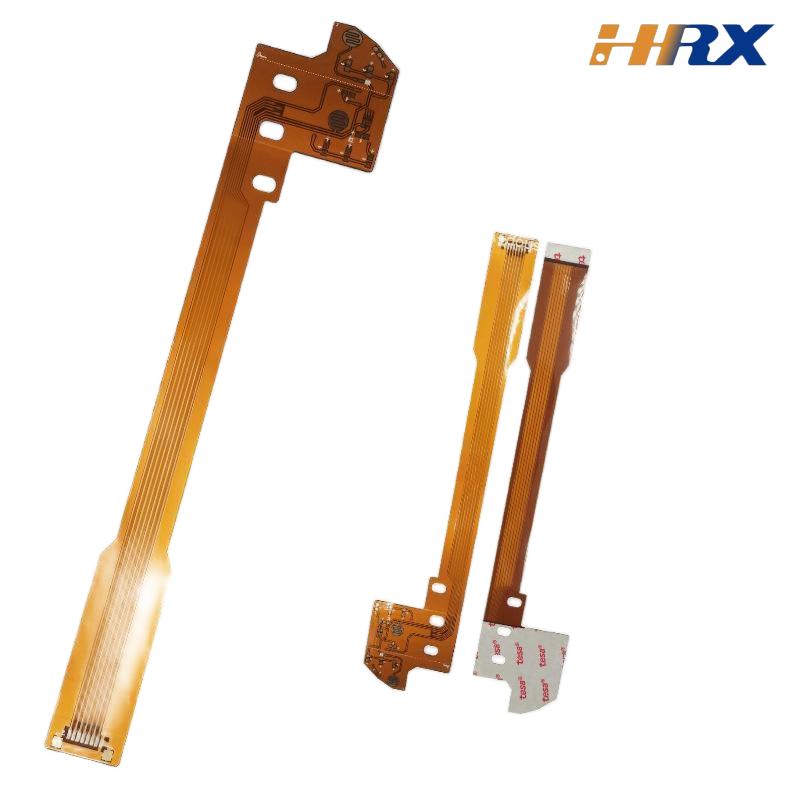

Flexible Printed Circuits (FPCs) are revolutionizing electronics design, enabling miniaturization, durability, and flexibility in applications ranging from wearable tech to automotive infotainment. Mastering FPC design and simulation is pivotal to ensuring performance, while aligning with manufacturing feasibility and quality standards. As a leader in FPC&PCB&Rigid-Flex solutions, Shenzhen Huaruixin Electronics Co., Ltd. combines decades of expertise with advanced engineering to navigate these complexities—let’s explore key considerations.

Key Considerations in FPC Design & Simulation

Material Engineering for Flexibility & Reliability

FPC design begins with substrate selection—polyimide (PI) remains the gold standard for its thermal resistance (up to 260°C) and flexural endurance, critical for dynamic applications. Simulation tools like Ansys or Altium Designer help model how substrates interact with adhesive-backed copper (ABC) and coverlay under cyclic bending, preventing trace cracking or delamination. For high-frequency applications, optimizing dielectric constant (Dk) and dissipation factor (Df) via simulation ensures signal integrity, while accounting for Z-axis expansion during thermal cycling.

Trace Routing & Impedance Control

Precise trace routing is foundational to FPC performance. In bend zones, trace curvature optimization and teardrop pad design—simulated via finite element analysis (FEA)—reduce stress concentration. For high-speed signals, differential pair routing and impedance matching (50Ω, 75Ω) are non-negotiable; simulation tools validate these parameters to prevent signal degradation. Shenzhen Huaruixin leverages advanced EDA tools (Cadence, Allegro) to refine routing, ensuring compliance with IPC-2223 standards.

Production: Bridging Design Simulation & Manufacturing Excellence

Even the most robust FPC designs falter without manufacturing precision. Etching accuracy—simulated to predict undercutting and line width tolerance—is critical for trace integrity. At Huaruixin’s ISO 9001-certified manufacturing facility, FEA-driven simulations optimize lamination pressure and curing temperature for multi-layer FPCs, minimizing warpage in rigid-flex transitions.

Flex circuit prototyping is another linchpin. Rapid prototyping, paired with simulation validation, allows engineers to test bend radius limits (typically 1-3x the FPC thickness) and flexural cycle life (up to 100,000 cycles for consumer electronics). Huaruixin’s in-house prototyping lab accelerates this process, ensuring designs transition smoothly to mass production.

Quality Control: Validating Simulation with Rigorous

Quality inspection transforms simulation data into tangible reliability. AOI (Automated Optical Inspection) detects micro-voids, trace misalignment, and coverlay defects—critical for automotive-grade FPCs. For mechanical validation, dynamic flex testing (per IPC-TM-650) verifies flexural endurance, while thermal shock testing (-40°C to 125°C) validates performance in extreme environments.

Electrical testing is equally vital. Flying probe testing ensures continuity and insulation resistance, while TDR (Time Domain Reflectometry) validates impedance consistency—all benchmarked against pre-production simulation data. Huaruixin’s QC protocols, honed over 15+ years, integrate these tests to deliver FPCs with 99.9% yield for high-volume orders.

Partner with Huaruixin for FPC Excellence

Whether you need high-reliability FPCs for medical devices or cost-optimized solutions for consumer electronics, Huaruixin’s expertise in FPC design and simulation ensures success. Our ODM/OEM capabilities—backed by a 50,000㎡ manufacturing base—support rapid scaling from prototyping to mass production.

For project inquiries, leverage our technical team’s experience in rigid-flex PCB design, high-temperature FPCs, and miniaturized FPC solutions. Visit www.hrxfpc.comfor whitepapers on FPC material science and design best practices. To discuss your project, emailsales@hrxfpc.com—our engineers are ready to collaborate on simulations, optimize designs, and deliver FPCs that exceed your expectations.
