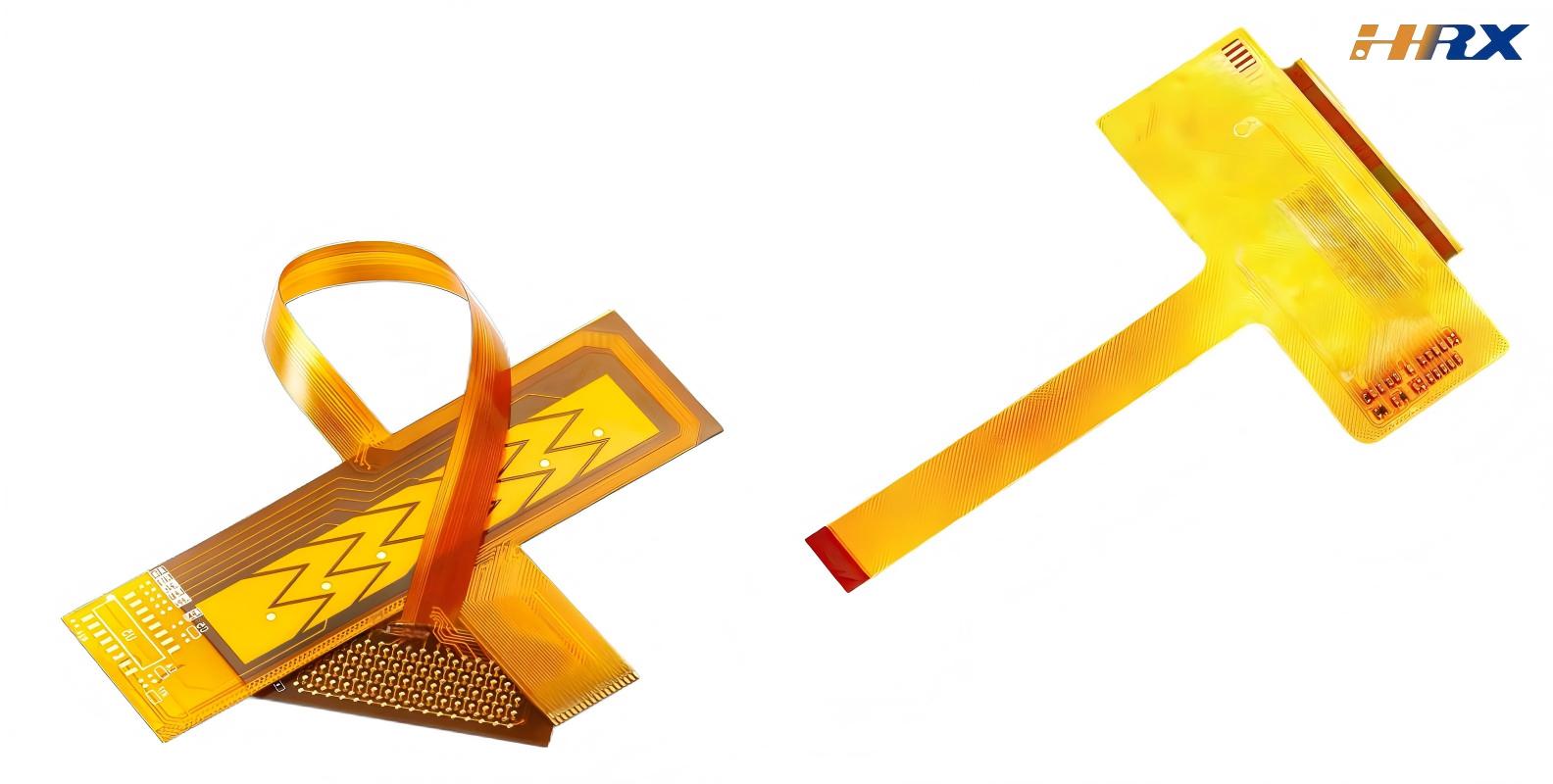

In the manufacturing of Flexible Printed Circuits (FPC), Printed Circuit Boards (PCB), and Rigid-Flex PCBs, copper plating technologies—specifically electroless copper plating (ELP) and electroplated copper (EP)—serve as the backbone of reliable interconnection. As a global ODM/OEM manufacturer with extensive expertise in FPC/PCB/rigid-flex solutions, Shenzhen Huaruixin Electronics Co., Ltd. shares insights into the core characteristics, critical roles, and essential considerations of these processes, paired with real-world application cases.

Core Characteristics of Electroless Copper Plating & Electroplated Copper

1. Electroless Copper Plating (ELP)

Electroless Deposition Mechanism: Utilizes a chemical reduction reaction (no external electric current) to deposit a uniform copper layer on non-conductive substrates (e.g., polyimide for FPC, FR-4 for PCB). The process relies on catalysts (e.g., palladium chloride) to initiate copper ion reduction, ensuring adhesion to insulating materials.

Uniformity & Coverage: Excels in coating complex geometries—including blind vias, buried vias, and irregular FPC edges—with consistent thickness (typically 0.5–2 μm). Ideal for rigid-flex PCBs where seamless coverage across flexible and rigid interfaces is critical.

Adhesion Performance: Forms a metallurgical bond with substrate surfaces (after proper activation and micro-etching), delivering excellent peel strength (≥0.8 N/mm for FPC applications), which is vital for flexible circuits subjected to repeated bending.

Process Flexibility: Compatible with ultra-thin substrates (down to 12 μm polyimide) and low-temperature operations (60–85°C), avoiding thermal damage to sensitive FPC materials.

2. Electroplated Copper (EP)

Electrolytic Deposition Mechanism: Requires an external DC power supply to drive copper ion deposition onto conductive seed layers (often electroless copper). The cathode (PCB/FPC) attracts Cu²⁺ ions from the electrolyte, enabling precise thickness control.

Thickness Versatility: Supports thick copper deposition (2–100 μm+) for high-current applications (e.g., power electronics PCBs, automotive FPCs). Thin electroplated layers (2–5 μm) are used for fine-pitch circuitry (≤0.1 mm line/spacing) in consumer electronics.

High Conductivity: Delivers superior electrical conductivity (≥58 MS/m) compared to electroless copper, making it optimal for signal transmission in high-frequency FPCs (e.g., 5G device antennas) and power distribution in industrial PCBs.

Cost-Efficiency: Scalable for mass production, with faster deposition rates (1–5 μm/min) than electroless plating, reducing cycle time for high-volume PCB/ODM projects.

Critical Roles in FPC/PCB/Rigid-Flex Manufacturing

1. Electrical Interconnection

Via Metallization: Electroless copper provides the initial conductive layer for through-holes (PTH), blind vias, and microvias, while electroplating thickens the layer to ensure reliable signal/power transmission between layers. For example, in a 10-layer rigid-flex PCB for aerospace applications, Huaruixin uses ELP to coat 0.2 mm blind vias and EP to achieve 15 μm copper thickness, meeting IPC-6012/2221 standards.

Circuit Traces Formation: Electroplated copper forms high-integrity traces for FPCs in wearable devices, where thin (3 μm) yet conductive layers enable miniaturization without compromising current-carrying capacity.

2. Mechanical Reinforcement

Flexural Durability: The combination of electroless (adhesion layer) and electroplated (structural layer) copper enhances FPC resistance to bending fatigue. Huaruixin’s FPC for foldable smartphones uses a dual-layer copper structure (1 μm ELP + 4 μm EP) that withstands 100,000+ folding cycles.

Rigid-Flex Interface Stability: Electroless copper’s uniform coverage bridges the flexible (polyimide) and rigid (FR-4) sections of rigid-flex boards, preventing delamination under thermal cycling (-40°C to 125°C).

3. Thermal Management

Thick electroplated copper (≥30 μm) acts as a heat spreader in high-power PCB/FPC applications (e.g., LED drivers, automotive battery management systems). Huaruixin’s custom PCB for electric vehicles uses 50 μm electroplated copper traces to dissipate 15W/cm² heat, ensuring component reliability.

4. Foundation for Subsequent Processes

Electroless copper serves as a seed layer for electroplating, soldermask adhesion, and surface finishing (e.g., ENIG, HASL). Poor electroless plating quality directly impacts solder joint integrity and long-term reliability.

Essential Considerations for Process Optimization

1. Substrate Pre-Treatment

Cleaning: Remove oil, dust, and organic contaminants via alkaline cleaning and plasma treatment—critical for FPC polyimide substrates, where residues degrade copper adhesion. Huaruixin implements a 3-step cleaning process (alkaline degreasing → micro-etching → activation) to achieve >99% surface cleanliness.

Activation: For electroless plating, palladium catalyst activation ensures uniform copper nucleation. Over-activation causes catalyst agglomeration, while under-activation leads to poor coverage—especially in microvias (≤0.1 mm diameter).

2. Bath Chemistry Control

Electroless Copper Bath: Monitor pH (12.5–13.5), temperature (70–80°C), and copper ion concentration (0.03–0.05 mol/L) to prevent bath decomposition and ensure consistent layer thickness. Huaruixin uses automated titration systems to maintain bath stability, reducing process variation by <5%.

Electroplating Electrolyte: Control copper sulfate (200–250 g/L), sulfuric acid (50–70 g/L), and additive concentrations (brighteners, levelers) to avoid dendrite formation and ensure trace uniformity. For fine-pitch FPCs (0.08 mm line/spacing), levelers are critical to prevent copper overbuild on trace edges.

3. Thickness & Uniformity Monitoring

Use X-ray fluorescence (XRF) for non-destructive thickness measurement and optical microscopy for via coverage inspection. Huaruixin adheres to IPC-6018 standards, with thickness tolerance ±10% for FPC copper layers.

For rigid-flex boards, ensure consistent thickness across flexible and rigid regions—electroplating current density adjustments (1–3 A/dm²) prevent over-plating on rigid sections and under-plating on flexible areas.

4. Environmental Compliance

Dispose of electroless plating waste (containing formaldehyde, EDTA) and electroplating sludge (copper oxides) in compliance with RoHS, REACH, and local environmental regulations. Huaruixin uses closed-loop electrolyte recycling systems to reduce copper waste by 30% and minimize environmental impact.

5. Quality Control for Reliability

Conduct peel strength tests (IPC-TM-650 2.4.8) and thermal shock cycling (-55°C to 125°C, 100 cycles) to validate adhesion and durability. For automotive FPCs, Huaruixin adds salt spray testing (48 hours, 5% NaCl) to ensure resistance to harsh environments.

Real-World Application Case by Huaruixin Electronics

A leading consumer electronics brand required a ultra-thin FPC (12 μm polyimide) for a foldable tablet, with 0.1 mm blind vias and 3 μm copper traces. Huaruixin’s solution:

Electroless Copper Plating: Used a palladium-activated bath to deposit 1 μm copper on blind vias, ensuring 100% coverage without bridging.

Electroplated Copper: Applied a low-current density (1.2 A/dm²) with leveling additives to achieve 2 μm thick traces, maintaining 0.08 mm line/spacing accuracy.

Reliability Testing: The FPC passed 200,000 folding cycles and 1,000 hours of high-temperature storage (85°C/85% RH), meeting the client’s 5-year product lifespan requirement.

This case demonstrates how combining electroless and electroplated copper processes addresses the unique challenges of ultra-thin, high-flexibility FPCs—delivering precision, reliability, and scalability.
