In the ever - evolving landscape of electronics manufacturing, the significance of Flexible Printed Circuit (FPC) reliability testing cannot be overstated. As a globally recognized ODM/OEM manufacturer specializing in FPCs, PCBs, and Rigid - Flex Printed Boards, Shenzhen Huaruixin Electronics Co., Ltd. has accumulated extensive expertise in conducting comprehensive FPC reliability evaluations. This blog aims to share our in - depth knowledge regarding three pivotal FPC reliability tests: Temperature Cycle Testing, Humidity Testing, and Bend Fatigue Testing, along with the critical factors that underpin our testing methodologies.

Temperature Cycle Testing: Simulating Thermal Stress for Robust FPCs

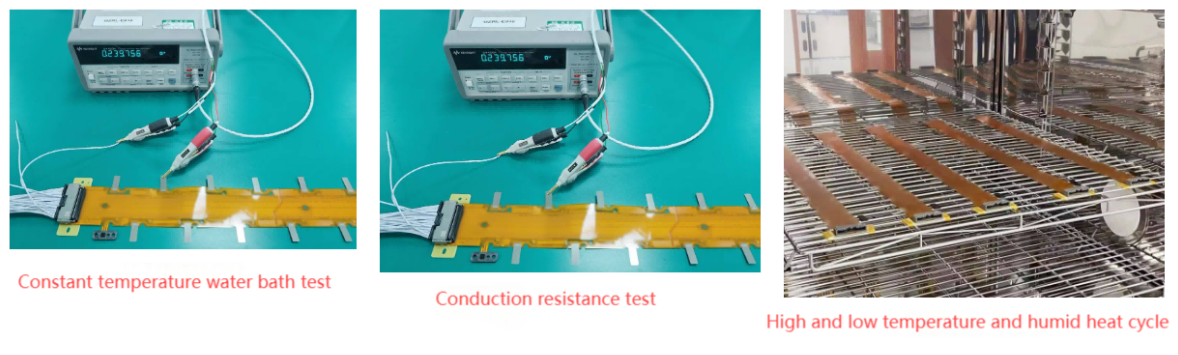

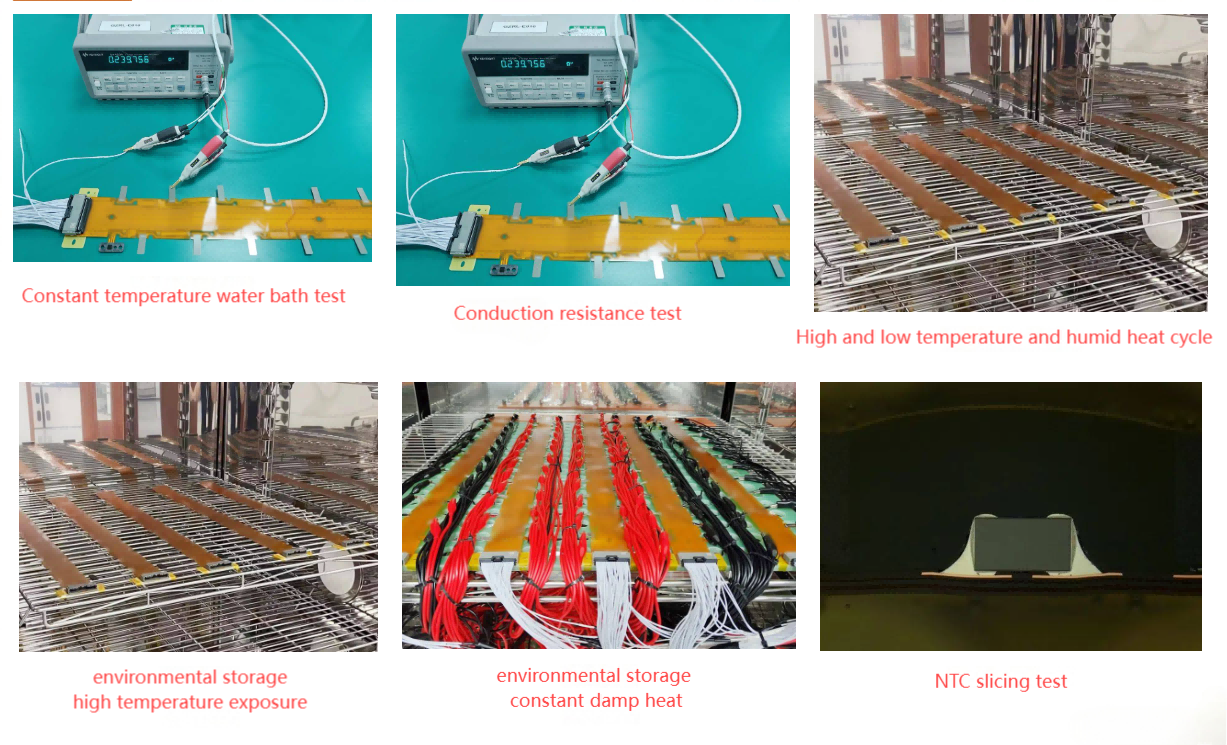

Temperature cycle testing is a cornerstone in FPC reliability assessment, meticulously designed to replicate the thermal stress FPCs endure in real - world applications, spanning from sub - zero cold to extreme heat conditions. At Shenzhen Huaruixin Electronics, we leverage cutting - edge high - low temperature test chambers equipped with advanced PID control systems. These chambers enable us to precisely modulate the thermal cycling profile, covering an extensive temperature range, typically from - 40℃ to 125℃, adaptable to diverse product specifications.

For sample preparation, we implement a statistically valid random sampling approach, selecting FPC specimens from each production batch to ensure representativeness. The samples are mounted on custom - fabricated fixtures that incorporate strain - relief mechanisms, maintaining stable positioning throughout the test while safeguarding normal electrical operation. Test parameters, including heating and cooling ramp rates (commonly set at 5℃/minute), dwell times at high and low temperatures (usually 30 minutes each), and the number of cycles (ranging from 50 to several hundred based on IPC - 6013 standards), are carefully calibrated.

During the test, real - time monitoring of electrical parameters such as impedance, capacitance, and signal integrity is carried out using high - precision impedance analyzers and network analyzers. Any deviations from baseline values are instantly logged, triggering immediate root - cause analysis. Post - test, a meticulous visual inspection for signs of thermal - induced damage, including delamination, cracking, and solder joint degradation, is complemented by a comparative analysis of pre - and post - test electrical performance data, ensuring a comprehensive assessment of thermal stress resilience.

Humidity Testing: Ensuring Optimal Moisture Ingress Protection

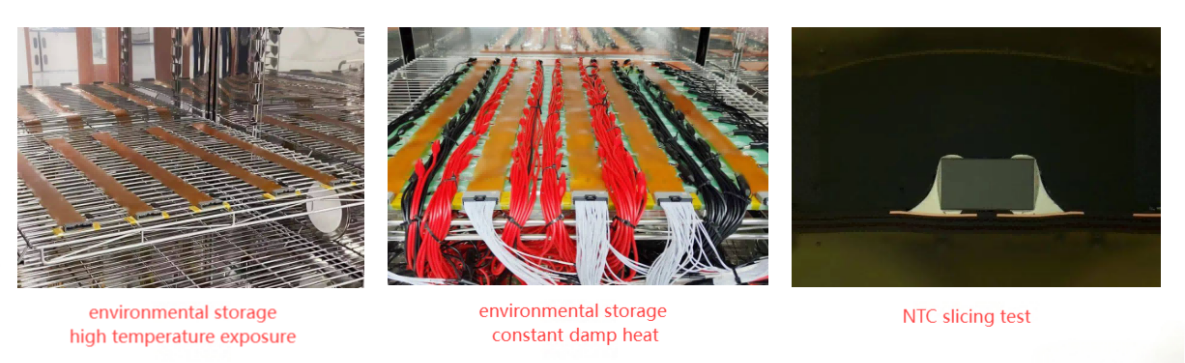

Humidity testing plays a crucial role in evaluating the moisture - proof capabilities of FPCs, a critical requirement for applications in humid, corrosive, or high - humidity environments. Our state - of - the - art temperature and humidity test chambers are compliant with international standards such as IEC 60068 - 2 - 30, offering precise control over relative humidity levels (ranging from 20%RH to 95%RH) and temperatures (from 25℃ to 85℃).

Similar to temperature cycle testing, sample selection adheres to strict quality control protocols, with FPCs placed on anti - static sample racks within the chamber to facilitate uniform air circulation. Test parameters, including humidity setpoints, temperature profiles, and exposure durations (often extending up to 96 hours or more for accelerated aging tests), are customized based on industry best practices and end - application requirements.

Throughout the test, continuous monitoring of chamber environmental parameters ensures compliance with the specified test conditions. Periodic visual inspections detect early signs of moisture - related damage, such as discoloration, swelling, or electrical leakage. Upon completion, a comprehensive post - test evaluation encompasses both visual and electrical performance checks, with FPCs deemed compliant only if they demonstrate no moisture - induced degradation and maintain stable electrical characteristics.

Bend Fatigue Testing: Determining the Flexural Endurance of FPCs

Bend fatigue testing is indispensable for quantifying the number of bend cycles an FPC can withstand before failure, a key metric for applications involving repetitive flexing, such as in wearable devices, foldable electronics, and automotive interior components. Our specialized FPC bend fatigue testing systems feature servo - controlled actuators, enabling precise control over bending angles (e.g., 180°), bending speeds (up to 60 cycles per minute), and bend radii (adjustable according to FPC thickness and material properties).

FPC samples are securely mounted using custom - designed clamping fixtures that minimize edge stress concentrations. Test parameters, including the target number of bend cycles (ranging from thousands to hundreds of thousands) and the bend radius (determined by the FPC's design flexibility requirements), are aligned with application - specific fatigue life expectations.

During the test, a combination of electrical impedance monitoring and visual inspection is employed. High - sensitivity resistance measurement systems detect minute changes in electrical conductivity, while high - resolution cameras capture visual signs of fatigue, such as micro - cracking and trace separation. Once the predefined failure criteria (e.g., a 10% increase in resistance or complete signal loss) are met, the test is terminated, and the cumulative bend cycles are recorded to determine the FPC's fatigue life.

Key Considerations for Robust FPC Reliability Testing

Equipment Calibration and Maintenance

Precision - calibrated testing equipment is the linchpin of reliable FPC reliability testing. Our test chambers and machines undergo regular calibration traceable to national and international standards, ensuring measurement accuracy and repeatability. Scheduled preventive maintenance, including sensor calibration, mechanical component inspection, and software updates, is performed by certified technicians to minimize equipment downtime and uphold test integrity.

Sample Selection and Preparation

Statistically representative sample selection is fundamental to obtaining valid test results. We adhere to ISO 2859 - 1 sampling plans, ensuring that the tested FPCs accurately reflect the quality characteristics of the entire production lot. Proper sample preparation, including de - spooling, conditioning, and anti - static handling, is essential to eliminate external variables that could skew test outcomes.

Standardized Testing Procedures

Compliance with industry - recognized standards, such as IPC - 6013 for FPC qualification and IEC 60068 for environmental testing, forms the basis of our standardized testing procedures. These comprehensive protocols cover all aspects of the testing process, from equipment setup and sample preparation to data acquisition and analysis, ensuring consistent, reproducible results across different test batches and product models.

Skilled Testing Personnel

Our team of highly trained reliability engineers and technicians is the driving force behind our testing excellence. With in - depth knowledge of FPC materials science, electrical engineering, and test methodologies, they are proficient in operating advanced testing equipment, interpreting complex test data, and troubleshooting issues promptly, ensuring the reliability and validity of every test conducted.
